title: 'My friend's antenna is an introduction'
body_classes: modular
date: '11:34 06-09-2023'
published: true
media_order: 'antenna-gp.jpg,stoyka1.jpg'
---

My friend, the amateur radio lives in the country in the Leningrad region, from where he goes on air on short and ultra-short waves. Here I will tell with his permission about the Ground Plane antenna of short waves of the range of 14 MHz, which he recently installed.

===

### Description

In addition to this antenna, City Windom is installed on the site, which works very well in the ranges of 80 and 40 meters (the length of the canvas is 41 meters from the house, the far end is abandoned using spin on wood). A new antenna of the GP (Ground Plane) type is installed in the range of 20 meters.

 ![Antenna GP 14 MHZ](antenna-gp.jpg?lightbox&cropResize=600,400&classes=img-zoomable "Антенна Ground Plane 14 МГц")

### GP antenna base
- implemented using the following parts and made by the statement of my friend _"By One Hour"_:
 ***Wooden bar**, scored into the ground with a sledgehammer by 30 cm - acts as a base and support insulator,
 ***Water cloth clamps** for attaching pipes from a construction store, nuts to them,
 ***Plastic bushings** they are worn on the antenna pipe in a heated form with an effort.

 ![GP antenna stand](stoyka1.jpg?lightbox&cropResize=600,400&classes=img-zoomable "Стойка (основание) antennas GP ")

### Vertical antenna GP
 ***Rod** - from the marine emergency radio station - 5 meters high.
 ***counterweights** - resonant, 3 pieces on the ground "in a hurry".

The results of work on the air speak for themselves. The transfer of the radio station is heard almost throughout the globe, including Oceania, the New Zelelandia and Canada, the West of the United States (it is impossible to mention all countries). Pictures from the PSKREPORTER site (FT8 mode) on Monday September 4, 2023.

KL7AC

Аляска, США

HL4GAV

Южная Корея

VO1CRM

остров Ньюфаундленд и полуостров Лабрадор, Канада

VY0ERC

Нунавут, новая территория Канады

YC9RRR

Индонезия

YC3CYK

Восточная Ява, Индонезия

FR4NB

остров Реюнион — заморский регион Франции

CU3HY

Азорские острова — автономный регион Португалии.

Error: Invalid Frontmatter

Path: /home/r/ra1ahqth/ra1ahq.blog/public_html/user/pages/01.posts/antenna-moego-druga/03._zakluchenie/gallery.en.md

Failed to read /home/r/ra1ahqth/ra1ahq.blog/public_html/user/pages/01.posts/antenna-moego-druga/03._zakluchenie/gallery.en.md: Unexpected characters near "s antenna is a conclusion'" at line 1 (near "title: 'My friend's antenna is a conclusion'").

---
title: 'My friend's antenna is a conclusion'
body_classes: modular
date: '11:58 06-09-2023'
media_order: 'condx1.png,condx2.png'
published: true
---

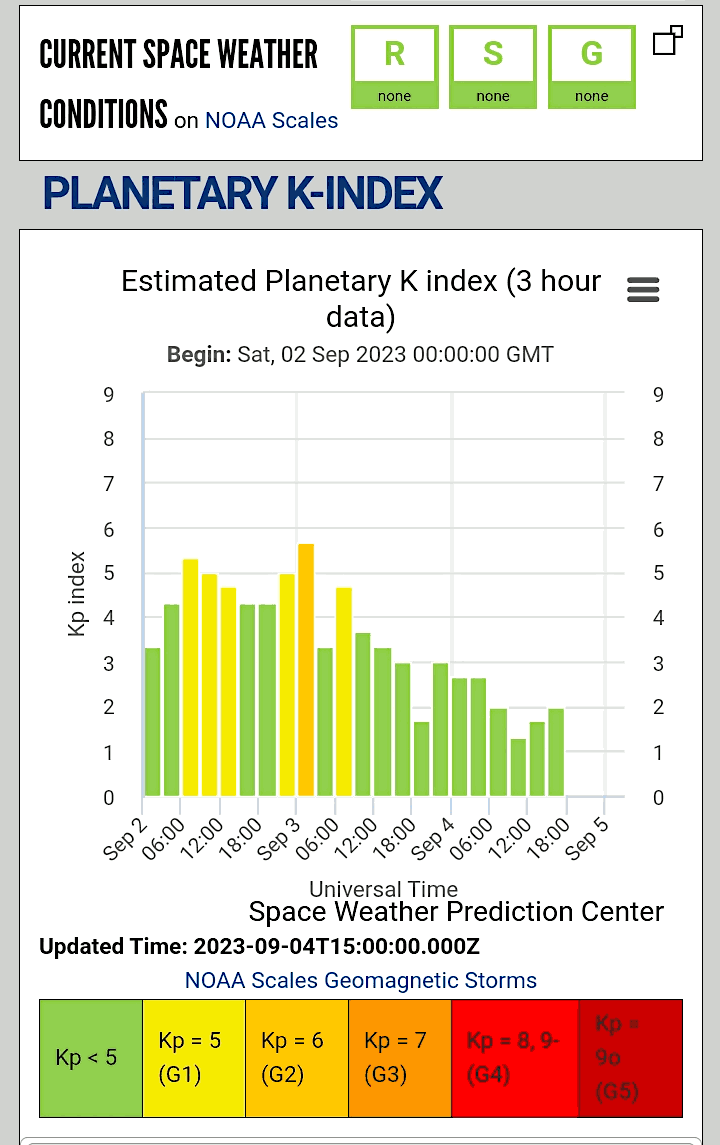

I bring the conditions of the ionosphere in early September 2023. Perhaps they played a significant role.

Kp=2

Авроральная и геомагнитная активность - тихо

Солнечная активность — высокая

Максимум солнечного цикла ожидается в 2024 году

Error: Invalid Frontmatter

Path: /home/r/ra1ahqth/ra1ahq.blog/public_html/user/pages/01.posts/antenna-moego-druga/04._vyvod/text.en.md

Failed to read /home/r/ra1ahqth/ra1ahq.blog/public_html/user/pages/01.posts/antenna-moego-druga/04._vyvod/text.en.md: Unexpected characters near "s antenna is conclusion'" at line 1 (near "title: 'My friend's antenna is conclusion'").

---
title: 'My friend's antenna is conclusion'
body_classes: modular
date: '12:05 06-09-2023'
---

### List of materials and tools

1)**Metalloresine clamp with dowel and screw** 1/2 - Ø20 ... 25mm
or **Metalloresine clamp with dowel and screw** 1 - Ø32 ... 36mm

2)**PE-XA sleeve for pipes made of stitched polyethylene Ø16 white**
or **PE-XA sleeve for pipes made of stitched polyethylene Ø25 white**
or **PE-XA sleeve for pipes made of steamed polyethylene Ø32 white**

3)**Bar 30x30 or 40x40mm, 1 meter length**.

4)**Sledgehammer**

5)**Drill** and the woods rode.

### Conclusion

Both DX propagation and the "Ground Plane" Antenna for 20 meters ("twenty") band work fine "to the distance" together. At low power of 50 watts on short waves, in the afternoon my friend spent the radio communications at 8000-16000 km with a digital view of FT8. In addition, the antenna looks aesthetically pleasing, beautifully - almost the best stationary option for a summer cottage. Its design is strong, with low sailing and does not need stretching.
