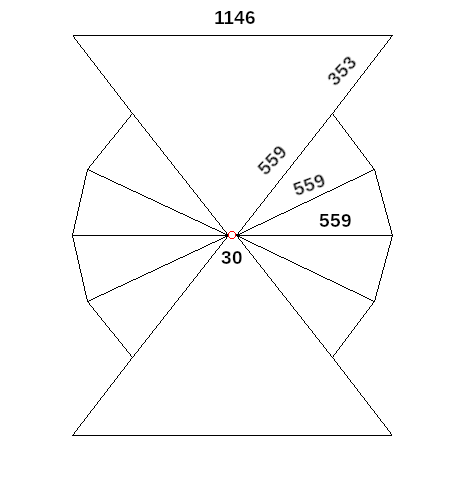

--- title: 'Dimensions of the Kharchenko "Web" broadband antenna for FM and VHF bands' url: 'https://ra1ahq.blog/en/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc' markdown: 'https://ra1ahq.blog/en/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc.md' lang: en date: '2026-02-11' description: 'In the article I give the dimensions of the Gossamer antenna for the FM and VHF bands. Introd' taxonomy: category: - blog tag: - антенны - УКВ archives_month: - feb_2026 archives_year: - '2026' --- # Dimensions of the Kharchenko "Web" broadband antenna for FM and VHF bands 11 February 2026 ![Dimensions of the Kharchenko "Web" broadband antenna for FM and VHF bands](https://ra1ahq.blog/images/0/b/e/3/9/0be39b4fde44141804574a4f4ac7cbc06dbe180b-pautnew.png)17:53 ### Dimensions of the Kharchenko "Web" broadband antenna for FM and VHF bands [антенны](https://ra1ahq.blog/en/tag:%D0%B0%D0%BD%D1%82%D0%B5%D0%BD%D0%BD%D1%8B), [УКВ](https://ra1ahq.blog/en/tag:%D0%A3%D0%9A%D0%92) 11 February 2026 17:53 In the article I give the dimensions of the Gossamer antenna for the FM and VHF bands. ### Introduction The Gossamer antenna was widely used in 1960-1990 for receiving television in the meter wavelength range, since this antenna is very broadband. It was believed that it covered all 12 “meter” channels. ### Description of the "Gossamer" antenna Another advantage is the possibility of making it from scrap materials - two flexible rods and any wire. The antenna is a variant of a zigzag antenna, but round in shape. In recent years, the antenna has been forgotten, so for long-distance reception of FM radio, a dipole - split or loop - is sufficient. Dipoles covering the frequency range 64-108 MHz do not exist. The dipole for the range 87-108 MHz is described in the article ["FM radio antennas 87-108 MHz"](https://ra1ahq.blog/en/antenny-fm-radio). Here, in this article, I have given the dimensions of the Gossamer antenna,[developed by engineer Konstantin Kharchenko](https://ru.wikipedia.org/wiki/%D0%90%D0%BD%D1%82%D0%B5%D0%BD%D0%BD%D0%B0_%D0%A5%D0%B0%D1%80%D1%87%D0%B5%D0%BD%D0%BA%D0%BE#%D0%9F%D1%80%D0%BE%D0%B5%D0%BA%D1%82_%D0%A5%D0%B0%D1%80%D1%87%D0%B5%D0%BD%D0%BA%D0%BE_%D0%B8_%D0%BC%D0%BE%D0%B4%D0%B8%D1%84%D0%B8%D0%BA%D0%B0%D1%86%D0%B8%D0%B8), converted to FM and VHF radio bands. The “gossamer” antenna can be used in a summer cottage as an antenna placed in the attic to connect to a stereo or VHF radio. A 75 Ohm low attenuation television cable (SAT-703 and similar) is connected to the power points in the center of the antenna. With horizontal polarization, it is traditionally carried first sideways, then secured along the rim and lowered down near the mast. This antenna has not previously been used for vertical polarization. I believe that the cable with vertical polarization should have a shut-off choke (5-6 turns of cable on a base with a diameter of 50 mm) near the feed point. ### Antenna "Gossamer" for the range 87-108 MHz (FM) The perimeter of a circle of 4272 mm is divided into equal 24 sectors of 178 mm each. A pair of lower and upper sectors are jumpers. The diameter of the circle is not very critical, in the model it is 1360 mm, tolerances of plus or minus 50 millimeters are possible. The matching graph with a 75 Ohm cable is shown below. The SWR varies from 1.4 to 1.7. ![swr-paut](https://ra1ahq.blog/images/b/2/3/8/5/b238500c56ee8ddd971454b1b1df800e468102da-swr-paut.png "swr-paut") The radiation pattern when installing an antenna for horizontal polarization (feed points in the horizontal plane) is a figure of eight. ![paut-h](https://ra1ahq.blog/images/9/d/a/d/e/9dade68ccda3cdb37dbce86e1e1bb1dc179a1669-paut-h.png "paut-h") The radiation pattern when installing an antenna for vertical polarization (feed points in the vertical plane) is the average between an oval and a circle. ![paut-v](https://ra1ahq.blog/images/7/c/c/0/2/7cc021d636690c60ddddc61f246fe569d2b91f66-paut-v.png "paut-v") ### Antenna "Gossamer" for the range 65-108 MHz (VHF + FM) If you need to cover the 65-108 MHz range, the dimensions of the above “gossamer” antenna for the FM range must be increased by 1.4 times. Then the antenna covers both the “Soviet” VHF band OIRT 65-74 MHz and the “Western” VHF CCIR 87.5-108 MHz. The perimeter of a circle of 5980 mm is divided into equal 24 sectors of 250 mm. A pair of lower and upper sectors are jumpers. The diameter of the circle is 1909 mm, with a tolerance of plus or minus 50 mm. Agreement in the CCIR range 87.5-108 will be slightly higher, SWR=2.3. ![swr-paut2](https://ra1ahq.blog/images/2/d/5/9/4/2d594cdd5acd826e8cba58a707497c549d7d3f62-swr-paut2.png "swr-paut2") The gain of this antenna is G=3...4 dbi. ![paut2-gain](https://ra1ahq.blog/images/a/7/0/6/8/a7068e95aa3960f264e26bd408ba91a3d93d2318-paut2-gain.png "paut2-gain") The radiation pattern when placing power points in the horizontal plane (H-polarization) is a figure eight. ![dn](https://ra1ahq.blog/images/7/b/1/f/1/7b1f1c653f46ef3d4f28099d8e0e812427018295-dn.png "dn") I recommend first finding out the polarization of the nearest (up to 200 km) radio centers using a map . In the OIRT range 65-74 MHz the polarization is horizontal, in the CCIR 87.5-108 range vertical (V) polarization is used in Russia, and horizontal (H) polarization is used in Finland. ### Modification of the "gossamer" antenna for receiving VHF FM broadcasts For the broadcasting band 87.5-108 MHz, the antenna can be simplified by removing almost the entire grid, which saves material and simplifies manufacturing. This antenna is similar to a double triangle - a variant of the Kharchenko zigzag antenna. ![paut_size_mod](https://ra1ahq.blog/images/6/4/b/b/f/64bbf4cc122d7604218bcaef85825089d0be2909-pautsizemod.png "paut_size_mod") The gain of such an antenna is 3.5 dbi (1.36 dbd). SWR (standing wave ratio) graph for a cable with a characteristic impedance of 75 Ohms. ![paut-mod](https://ra1ahq.blog/images/4/f/c/c/c/4fccce37e7aba8f231633e8904dd8c85c674bb47-paut-mod.png "paut-mod") The bandwidth for SWR<2 level is 85.5 - 108 MHz. Antenna dimensions with horizontal polarization: width 1146, height 1442 mm. Antenna dimensions with vertical polarization: width 1442, height 1146 mm. To cut off the parasitic common-mode current along the cable braid, you need a cable shut-off choke. Or you need to move the cable to the side. This is especially true when installing an antenna to receive radio stations broadcasting in vertical polarization. ![paut-mod-v-pol](https://ra1ahq.blog/images/8/3/7/b/a/837ba7ae94770e656f312238a952ff094045cd5c-paut-mod-v-pol.png "paut-mod-v-pol") ### Models of the "Gossamer" antenna for the MMANA program - original "Web" [paut.zip](https://ra1ahq.blog/en/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc/paut.zip) - modified "Gossamer" (87-108 MHz)[paut-mod.zip](https://ra1ahq.blog/en/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc/paut-mod.zip)- 2 options. To obtain vertical polarization (V), rotate the antenna model (menu "Edit" - "Rotate") around the X axis by 90 degrees. ### Related publications [ ![](https://ra1ahq.blog/images/6/a/1/4/8/6a14898f504f463dd21a537f6f06644bf3e57ffd-yagi-fm-10mm.png) Dimensions of the 5-element Uda-Yagi antenna for the FM range 87.5-108 MHz ](https://ra1ahq.blog/en/razmery-5-elementnoi-antenny-uda-yagi-dlya-fm-diapazona-87-5-108-mgc) [ ![](https://ra1ahq.blog/images/b/c/c/b/f/bccbf8d86de2b97e6b87110889063422c5ac98a2-435-7el-3mm.png) Yagi antennas for 144 MHz (Hairpin) and 435 MHz ](https://ra1ahq.blog/en/antenny-yagi-144-mgc-hairpin-i-435-mgc) [ ![](https://ra1ahq.blog/images/0/0/4/0/c/0040c10c9a45986a89300ddb875ea4f3de46928c-foxhunt1.png) Antenna for "Fox Hunt" at 144.7 MHz ](https://ra1ahq.blog/en/antenna-dlya-okhoty-na-lis-na-144-7-mgc) [ ![](https://ra1ahq.blog/images/6/2/8/1/d/6281d1a1cabfb8f5d6f2e0472b43c1bd9a3854a0-2band50.png) Simple dual-band antennas for the 144 and 433 MHz amateur radio bands ](https://ra1ahq.blog/en/prostye-open-sleeve-144-433-mgc) [ ![](https://ra1ahq.blog/images/5/8/8/b/0/588b037e35cf4bb3f1184307c033d21128c406d4-plate.png) Constructive solution for the power supply unit for "wave channel" antennas of the VHF range with a split vibrator ](https://ra1ahq.blog/en/konstruktivnoe-reshenie-uzla-pitaniya-antenn-volnovoi-kanal-ukv-diapazona-s-razreznym-vibratorom) [ Backward](https://ra1ahq.blog/en/razmery-5-elementnoi-antenny-uda-yagi-dlya-fm-diapazona-87-5-108-mgc "Previuous page") [ Forward ](https://ra1ahq.blog/en/chast-radiolyubitelskikh-veb-saitov-nedostupna-v-internet-iz-rossii "Next page") ## Languages - [Русский](https://ra1ahq.blog/posts/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc) - [English](https://ra1ahq.blog/en/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc) - [Deutsch](https://ra1ahq.blog/de/posts/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc) - [Français](https://ra1ahq.blog/fr/posts/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc) - [中文 (简体) (cn)](https://ra1ahq.blog/zh-cn/posts/razmery-shirokopolosnoi-antenny-kharchenko-pautinka-dlya-fm-diapazona-87-5-108-mgc) ## Theme ## RSS feeds [ Atom 1.0](https://ra1ahq.blog/en/.atom) [ RSS](https://ra1ahq.blog/en/.rss) ## Popular tags [APRS](https://ra1ahq.blog/en/tag:APRS) [CW](https://ra1ahq.blog/en/tag:CW) [DX](https://ra1ahq.blog/en/tag:DX) [FM](https://ra1ahq.blog/en/tag:FM) [Linux](https://ra1ahq.blog/en/tag:Linux) [VHF](https://ra1ahq.blog/en/tag:VHF) [antennas](https://ra1ahq.blog/en/tag:antennas) [firefox](https://ra1ahq.blog/en/tag:firefox) [morse](https://ra1ahq.blog/en/tag:morse) [soundtrack](https://ra1ahq.blog/en/tag:soundtrack) [video](https://ra1ahq.blog/en/tag:video) [windows](https://ra1ahq.blog/en/tag:windows) [youtube](https://ra1ahq.blog/en/tag:youtube) [КВ](https://ra1ahq.blog/en/tag:%D0%9A%D0%92) [ТВ](https://ra1ahq.blog/en/tag:%D0%A2%D0%92) [УКВ](https://ra1ahq.blog/en/tag:%D0%A3%D0%9A%D0%92) [антенны](https://ra1ahq.blog/en/tag:%D0%B0%D0%BD%D1%82%D0%B5%D0%BD%D0%BD%D1%8B) [безопасность](https://ra1ahq.blog/en/tag:%D0%B1%D0%B5%D0%B7%D0%BE%D0%BF%D0%B0%D1%81%D0%BD%D0%BE%D1%81%D1%82%D1%8C) [длинные волны](https://ra1ahq.blog/en/tag:%D0%B4%D0%BB%D0%B8%D0%BD%D0%BD%D1%8B%D0%B5%20%D0%B2%D0%BE%D0%BB%D0%BD%D1%8B) [путешествия](https://ra1ahq.blog/en/tag:%D0%BF%D1%83%D1%82%D0%B5%D1%88%D0%B5%D1%81%D1%82%D0%B2%D0%B8%D1%8F) [религия](https://ra1ahq.blog/en/tag:%D1%80%D0%B5%D0%BB%D0%B8%D0%B3%D0%B8%D1%8F) [соревнования](https://ra1ahq.blog/en/tag:%D1%81%D0%BE%D1%80%D0%B5%D0%B2%D0%BD%D0%BE%D0%B2%D0%B0%D0%BD%D0%B8%D1%8F) [спутники](https://ra1ahq.blog/en/tag:%D1%81%D0%BF%D1%83%D1%82%D0%BD%D0%B8%D0%BA%D0%B8) [средние волны](https://ra1ahq.blog/en/tag:%D1%81%D1%80%D0%B5%D0%B4%D0%BD%D0%B8%D0%B5%20%D0%B2%D0%BE%D0%BB%D0%BD%D1%8B) [схемы](https://ra1ahq.blog/en/tag:%D1%81%D1%85%D0%B5%D0%BC%D1%8B) [тесты](https://ra1ahq.blog/en/tag:%D1%82%D0%B5%D1%81%D1%82%D1%8B) [трансивер](https://ra1ahq.blog/en/tag:%D1%82%D1%80%D0%B0%D0%BD%D1%81%D0%B8%D0%B2%D0%B5%D1%80) [управление](https://ra1ahq.blog/en/tag:%D1%83%D0%BF%D1%80%D0%B0%D0%B2%D0%BB%D0%B5%D0%BD%D0%B8%D0%B5) [фотографии](https://ra1ahq.blog/en/tag:%D1%84%D0%BE%D1%82%D0%BE%D0%B3%D1%80%D0%B0%D1%84%D0%B8%D0%B8) ## Random post [ I'll be lucky!](https://ra1ahq.blog/en/random) ## Archive of posts - [ October 2026 ✒ 5 ](https://ra1ahq.blog/en/archives_month:oct_2026) - [ September 2026 ✒ 9 ](https://ra1ahq.blog/en/archives_month:sep_2026) - [ August 2026 ✒ 6 ](https://ra1ahq.blog/en/archives_month:aug_2026) - [ July 2026 ✒ 13 ](https://ra1ahq.blog/en/archives_month:jul_2026) - [ June 2026 ✒ 8 ](https://ra1ahq.blog/en/archives_month:jun_2026) - [ May 2026 ✒ 2 ](https://ra1ahq.blog/en/archives_month:may_2026) - [ April 2026 ✒ 6 ](https://ra1ahq.blog/en/archives_month:apr_2026) - [ March 2026 ✒ 3 ](https://ra1ahq.blog/en/archives_month:mar_2026) - [ February 2026 ✒ 7 ](https://ra1ahq.blog/en/archives_month:feb_2026) - [ January 2026 ✒ 8 ](https://ra1ahq.blog/en/archives_month:jan_2026) - [ December 2025 ✒ 12 ](https://ra1ahq.blog/en/archives_month:dec_2025) - [ November 2025 ✒ 9 ](https://ra1ahq.blog/en/archives_month:nov_2025) - [ October 2025 ✒ 8 ](https://ra1ahq.blog/en/archives_month:oct_2025) - [ September 2025 ✒ 5 ](https://ra1ahq.blog/en/archives_month:sep_2025) - [ August 2025 ✒ 8 ](https://ra1ahq.blog/en/archives_month:aug_2025) - [ July 2025 ✒ 6 ](https://ra1ahq.blog/en/archives_month:jul_2025) - [ June 2025 ✒ 10 ](https://ra1ahq.blog/en/archives_month:jun_2025) - [ May 2025 ✒ 4 ](https://ra1ahq.blog/en/archives_month:may_2025) - [ April 2025 ✒ 4 ](https://ra1ahq.blog/en/archives_month:apr_2025) - [ March 2025 ✒ 4 ](https://ra1ahq.blog/en/archives_month:mar_2025) - [ February 2025 ✒ 11 ](https://ra1ahq.blog/en/archives_month:feb_2025) - [ December 2024 ✒ 8 ](https://ra1ahq.blog/en/archives_month:dec_2024) - [ November 2024 ✒ 2 ](https://ra1ahq.blog/en/archives_month:nov_2024) - [ October 2024 ✒ 8 ](https://ra1ahq.blog/en/archives_month:oct_2024) - [ September 2024 ✒ 3 ](https://ra1ahq.blog/en/archives_month:sep_2024) - [ August 2024 ✒ 5 ](https://ra1ahq.blog/en/archives_month:aug_2024) - [ July 2024 ✒ 9 ](https://ra1ahq.blog/en/archives_month:jul_2024) - [ June 2024 ✒ 6 ](https://ra1ahq.blog/en/archives_month:jun_2024) - [ May 2024 ✒ 7 ](https://ra1ahq.blog/en/archives_month:may_2024) - [ April 2024 ✒ 5 ](https://ra1ahq.blog/en/archives_month:apr_2024) - [ March 2024 ✒ 5 ](https://ra1ahq.blog/en/archives_month:mar_2024) - [ February 2024 ✒ 5 ](https://ra1ahq.blog/en/archives_month:feb_2024) - [ January 2024 ✒ 6 ](https://ra1ahq.blog/en/archives_month:jan_2024) - [ December 2023 ✒ 7 ](https://ra1ahq.blog/en/archives_month:dec_2023) - [ November 2023 ✒ 4 ](https://ra1ahq.blog/en/archives_month:nov_2023) - [ October 2023 ✒ 8 ](https://ra1ahq.blog/en/archives_month:oct_2023) - [ September 2023 ✒ 7 ](https://ra1ahq.blog/en/archives_month:sep_2023) - [ August 2023 ✒ 4 ](https://ra1ahq.blog/en/archives_month:aug_2023) - [ July 2023 ✒ 7 ](https://ra1ahq.blog/en/archives_month:jul_2023) - [ June 2023 ✒ 7 ](https://ra1ahq.blog/en/archives_month:jun_2023) - [ May 2023 ✒ 5 ](https://ra1ahq.blog/en/archives_month:may_2023) - [ April 2023 ✒ 6 ](https://ra1ahq.blog/en/archives_month:apr_2023) - [ March 2023 ✒ 5 ](https://ra1ahq.blog/en/archives_month:mar_2023) - [ February 2023 ✒ 2 ](https://ra1ahq.blog/en/archives_month:feb_2023) - [ January 2023 ✒ 5 ](https://ra1ahq.blog/en/archives_month:jan_2023) - [ December 2022 ✒ 7 ](https://ra1ahq.blog/en/archives_month:dec_2022) - [ November 2022 ✒ 8 ](https://ra1ahq.blog/en/archives_month:nov_2022) - [ October 2022 ✒ 6 ](https://ra1ahq.blog/en/archives_month:oct_2022) - [ September 2022 ✒ 9 ](https://ra1ahq.blog/en/archives_month:sep_2022) - [ August 2022 ✒ 8 ](https://ra1ahq.blog/en/archives_month:aug_2022) - [ July 2022 ✒ 4 ](https://ra1ahq.blog/en/archives_month:jul_2022) - [ June 2022 ✒ 9 ](https://ra1ahq.blog/en/archives_month:jun_2022) - [ May 2022 ✒ 7 ](https://ra1ahq.blog/en/archives_month:may_2022) - [ April 2022 ✒ 3 ](https://ra1ahq.blog/en/archives_month:apr_2022) - [ March 2022 ✒ 4 ](https://ra1ahq.blog/en/archives_month:mar_2022) - [ February 2022 ✒ 6 ](https://ra1ahq.blog/en/archives_month:feb_2022) - [ January 2022 ✒ 7 ](https://ra1ahq.blog/en/archives_month:jan_2022) - [ December 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:dec_2021) - [ November 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:nov_2021) - [ October 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:oct_2021) - [ September 2021 ✒ 10 ](https://ra1ahq.blog/en/archives_month:sep_2021) - [ August 2021 ✒ 6 ](https://ra1ahq.blog/en/archives_month:aug_2021) - [ July 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:jul_2021) - [ June 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:jun_2021) - [ May 2021 ✒ 7 ](https://ra1ahq.blog/en/archives_month:may_2021) - [ April 2021 ✒ 4 ](https://ra1ahq.blog/en/archives_month:apr_2021) - [ March 2021 ✒ 4 ](https://ra1ahq.blog/en/archives_month:mar_2021) - [ February 2021 ✒ 3 ](https://ra1ahq.blog/en/archives_month:feb_2021) - [ January 2021 ✒ 4 ](https://ra1ahq.blog/en/archives_month:jan_2021) - [ December 2020 ✒ 8 ](https://ra1ahq.blog/en/archives_month:dec_2020) - [ November 2020 ✒ 2 ](https://ra1ahq.blog/en/archives_month:nov_2020) - [ October 2020 ✒ 3 ](https://ra1ahq.blog/en/archives_month:oct_2020) - [ September 2020 ✒ 3 ](https://ra1ahq.blog/en/archives_month:sep_2020) - [ August 2020 ✒ 5 ](https://ra1ahq.blog/en/archives_month:aug_2020) - [ July 2020 ✒ 5 ](https://ra1ahq.blog/en/archives_month:jul_2020) - [ June 2020 ✒ 8 ](https://ra1ahq.blog/en/archives_month:jun_2020) - [ May 2020 ✒ 10 ](https://ra1ahq.blog/en/archives_month:may_2020) - [ April 2020 ✒ 4 ](https://ra1ahq.blog/en/archives_month:apr_2020) - [ March 2020 ✒ 2 ](https://ra1ahq.blog/en/archives_month:mar_2020) - [ January 2020 ✒ 1 ](https://ra1ahq.blog/en/archives_month:jan_2020) - [ December 2019 ✒ 2 ](https://ra1ahq.blog/en/archives_month:dec_2019) ## Search ## Weather forecast [На 14 дней](https://world-weather.ru/pogoda/russia/saint_petersburg/14days/) [world-weather.ru](https://world-weather.ru/) --- ## Navigation - Parent: [RA1AHQ](https://ra1ahq.blog/en/index.md) - Previous: [Some amateur radio websites are not accessible on the Internet from Russia](https://ra1ahq.blog/en/chast-radiolyubitelskikh-veb-saitov-nedostupna-v-internet-iz-rossii.md) - Next: [Dimensions of the 5-element Uda-Yagi antenna for the FM range 87.5-108 MHz](https://ra1ahq.blog/en/razmery-5-elementnoi-antenny-uda-yagi-dlya-fm-diapazona-87-5-108-mgc.md)
